4 Intel Xeon MP 7140M processors . . . each chip has two hyper-threaded cores . . . each core has 1mb L2 cache . . . each chip has 16mb shared L3 cache.

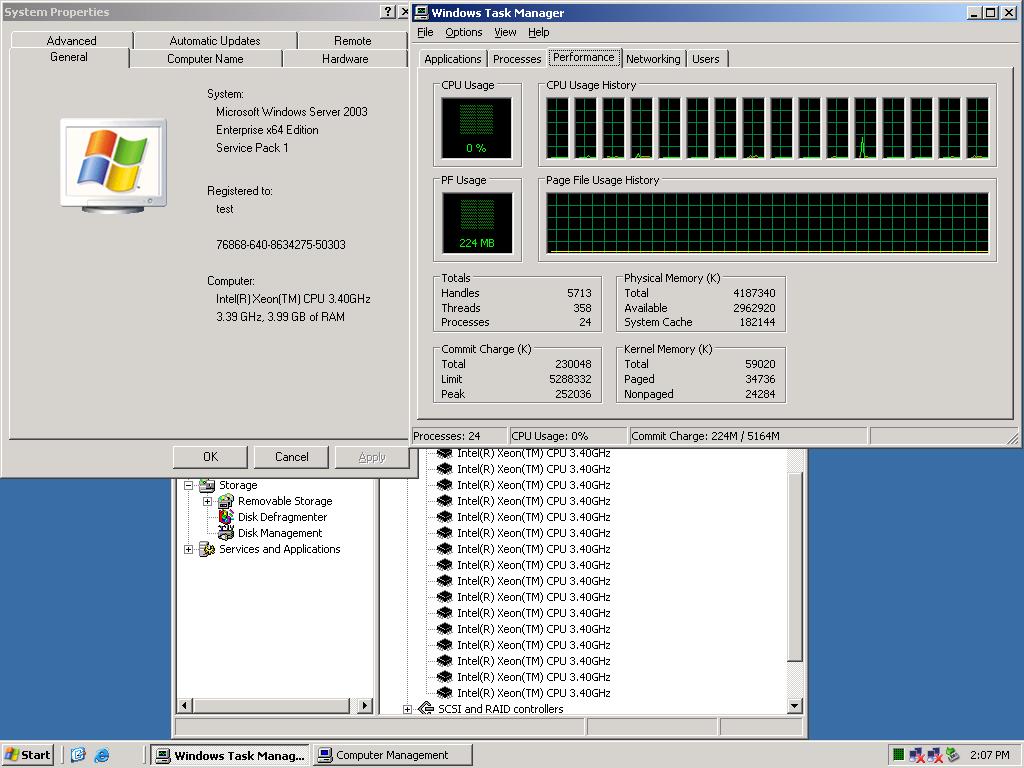

This screen shot was taken while 1 of the 4 memory cards was populated; it will run on 16gb memory, and can accomodate up to 64gb.

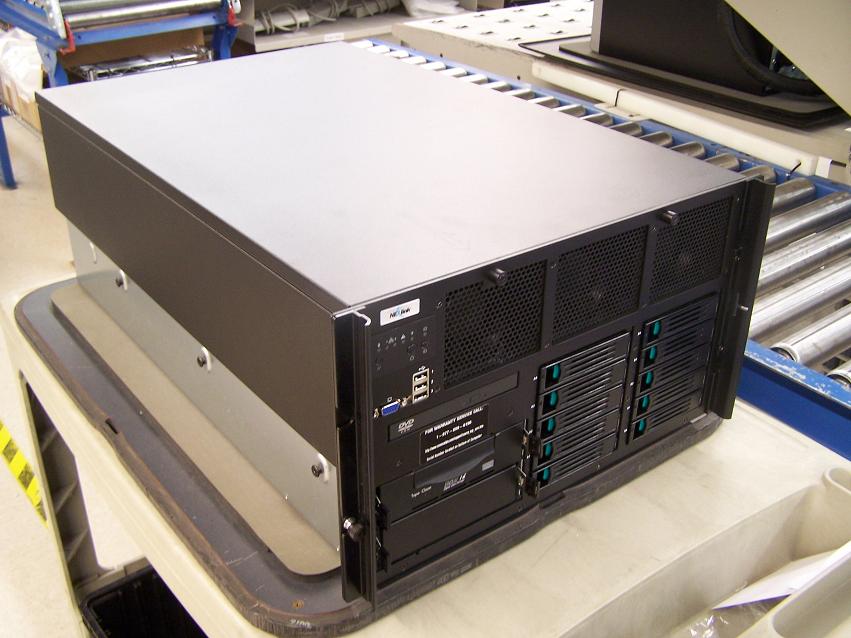

This monster consumes 6U of rackspace and weighs nearly 200 pounds with a full complement of drives.

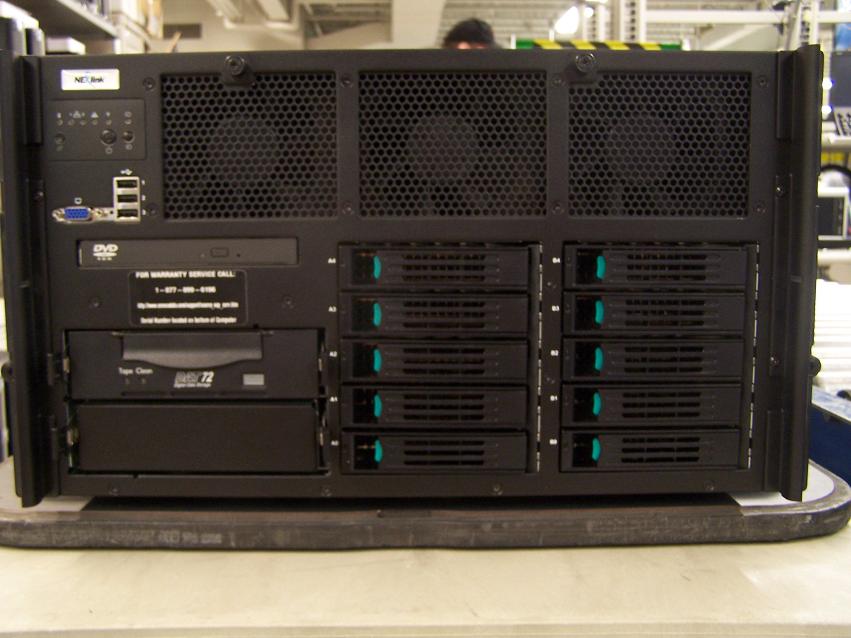

hot-plug cages, removable drives, op con panel. This machine is configured with 272gb of available raid-protected disk.

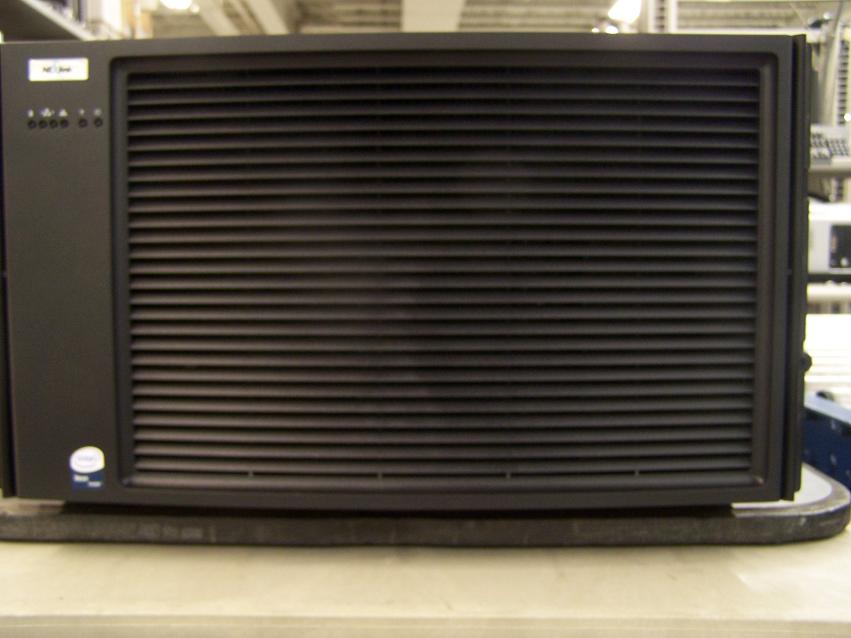

The louvered plastic cosmetic bezel. I'd rather look at the machine's face.

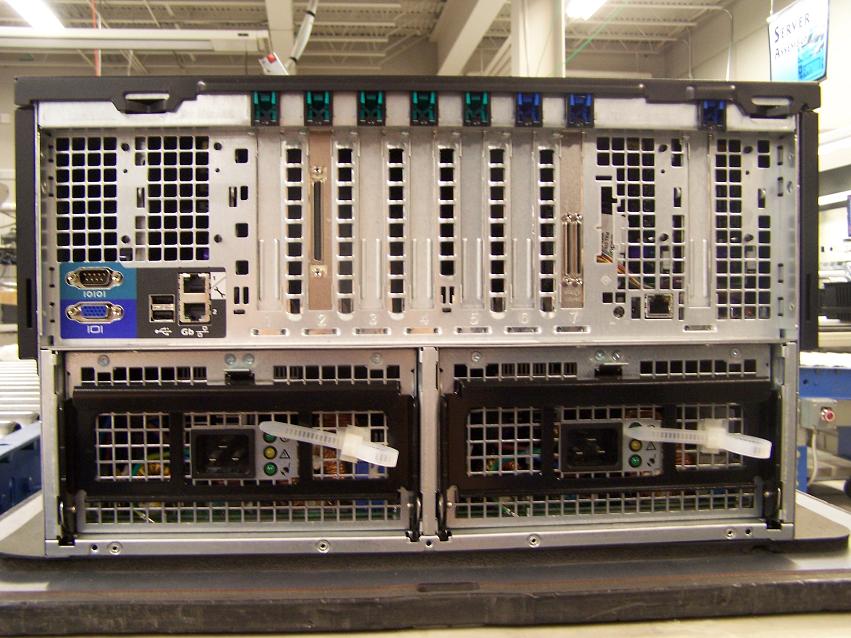

rear ports and redundant pluggable 1570w power supplies

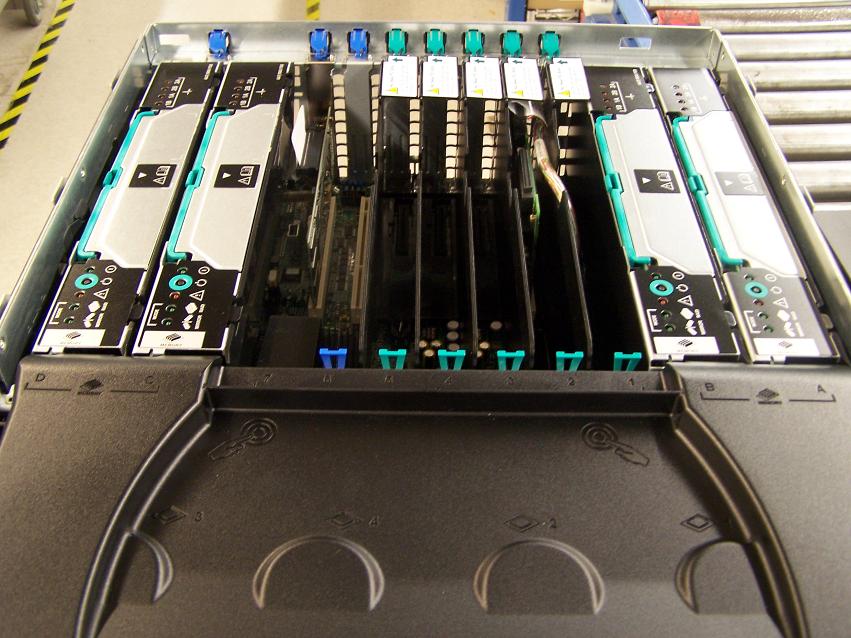

Pairs of memory cards flank the PCI-X and PCI-Express slots. Each card holds 4 DIMMs. The memory subsystem supports hot-add, hot-spare, and mirroring.
Slots with green tabs are hot-plug capable.

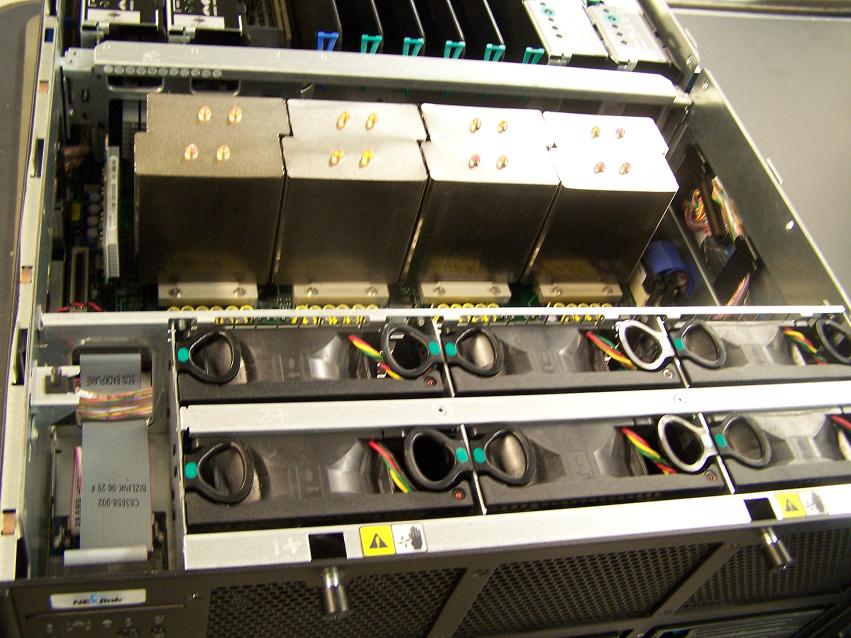

A large air baffle/duct keeps the processors comfortable. The logic components are cooled by three redundant pairs of fans.

1/5/07
